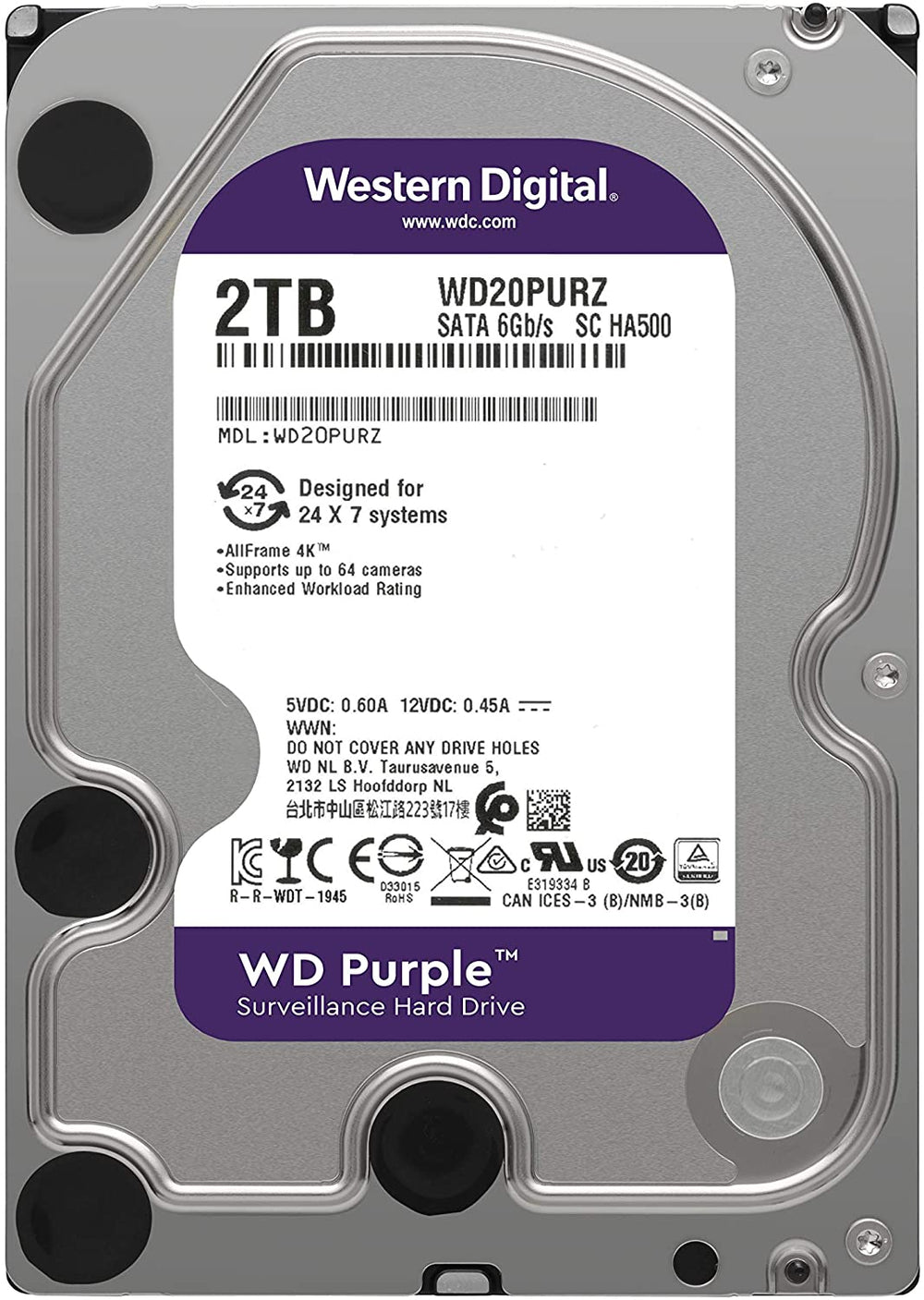

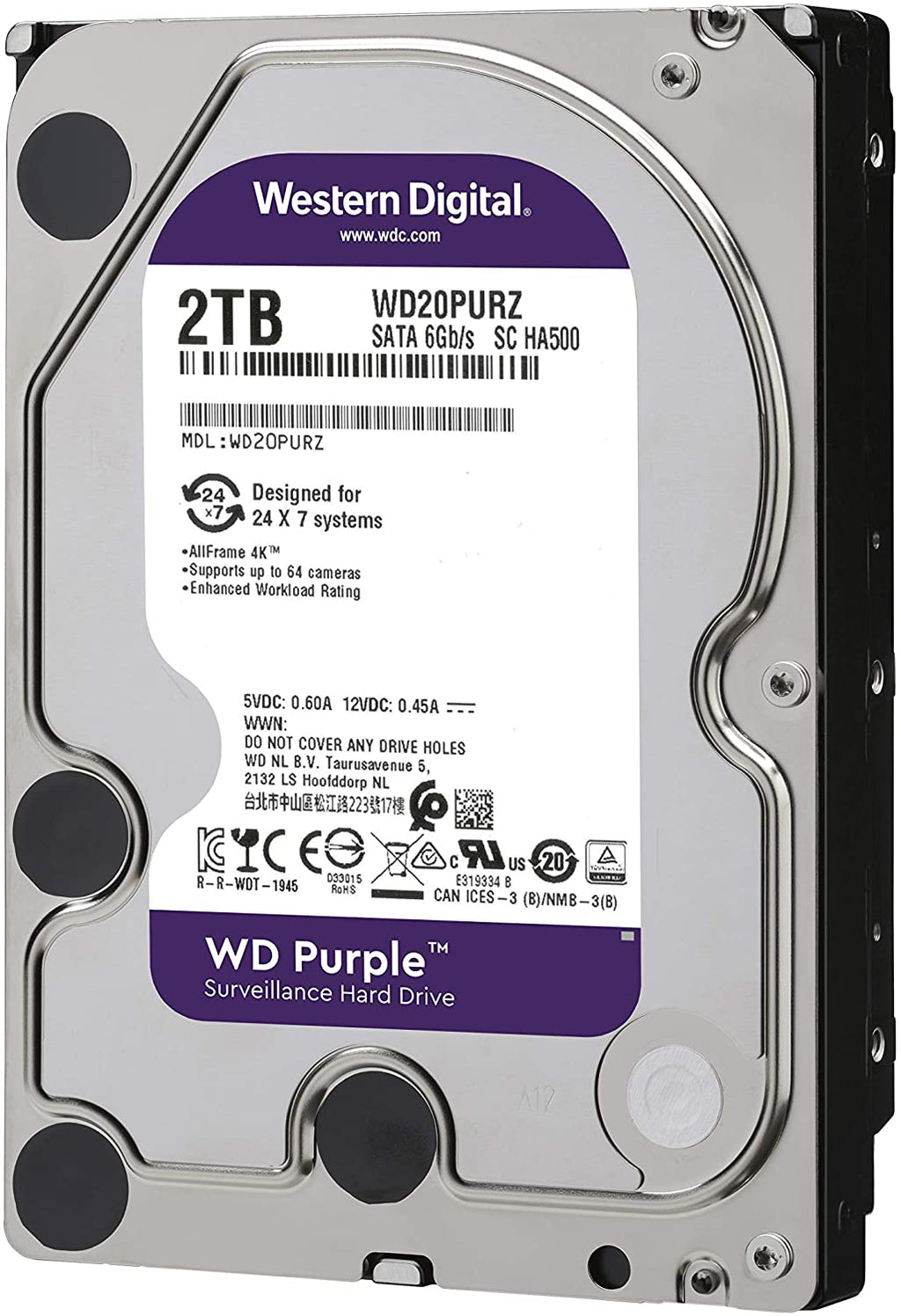

WD Purple 2TB Surveillance Hard Drive - 5400 RPM Class, SATA 6 Gb/s, 64 MB Cache

$94.99
  • WD Purple 2TB Surveillance Hard Drive - 5400 RPM Class, SATA 6 Gb/s, 64 MB Cache

RaidBox

WD Purple 2TB Surveillance Hard Drive - 5400 RPM Class, SATA 6 Gb/s, 64 MB Cache

$94.99
Information
The right drive for the right job.
WD Purple™ drives have been engineered specifically for surveillance, so they’re able to withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. A disruption to a drive could result in a failure that impacts multiple users, your security archive, or even the entire system. With WD Purple™, you get reliable, surveillance-class storage that’s tested for compatibility in a wide-range of security systems.

Industry-leading storage. Surveillance you can trust.
WD is a worldwide leader in the hard drive industry. With WD Purple™ surveillance storage, you have a drive engineered for high temperature, always-on surveillance systems so you can rely on quality video playback when you need it most. Whether you’re protecting loved ones or monitoring your business, WD Purple™ offers performance you can trust.

Trust your view with AllFrame 4K™ technology
Missed frames and lost footage could be a serious problem when video surveillance needs to be retrieved. All WD Purple™ drives are equipped with AllFrame 4k™ technology, which improves ATA streaming to help reduce frame loss, improve overall video playback, and increase the number of hard drive bays supported within a NVR.

Features:
• Engineered specifically for surveillance security systems.
• Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications.
• Prioritized write-operations for maximized surveillance performance.
• TLER & ATA streaming support.
Product Specifications
Interface : SATA 6 Gb/s
Formatted capacity : 2TB
Form factor : 3.5-inch
Advanced Format (AF) : Yes
RoHS compliant : Yes
Product Features
Cameras supported : Up to 64
Drive bays supported : Up to 8
Tarnish resistant components : No
Performance
Interface transfer rate (max) :
Buffer to host : 6 Gb/s
Host to/from drive (sustained) : 145 MB/s
Cache : 64 MB
Performance Class : 5400-RPM Class
Reliability/Data Integrity
Load/unload cycles : 300,000
Annualized workload rating : 180TB/yr
Non-recoverable read errors per bits read : <1 in 1014
Power Management
Average power requirements :
Read/Write : 4.4 W
Idle : 4.1 W
Standby/Sleep : 0.4 W
Environmental Specifications
Temperature :
Operating : 0oC to 65oC
Non-operating : -40oC to 70oC
Shock :
Operating (2 ms, read/write) : 30Gs
Operating (2 ms, read) : 65Gs
Non-operating (2 ms) : 250Gs
Acoustics (dBA)
Idle : 23
Seek (average) : 23
