PERFORMANCE COMES IN PAIRS
Two front panels, two 200mm ARGB fans, and a handle to grip onto when the adrenaline kicks in. The MasterCase H500 is established as the go-to chassis for high performance airflow. Now, with 200mm ARGB fans, its legacy is upgraded with premium lighting.
Two front panels, two 200mm ARGB fans, and a handle to grip onto when the adrenaline kicks in. The MasterCase H500 is established as the go-to chassis for high performance airflow. Now, with 200mm ARGB fans, its legacy is upgraded with premium lighting.

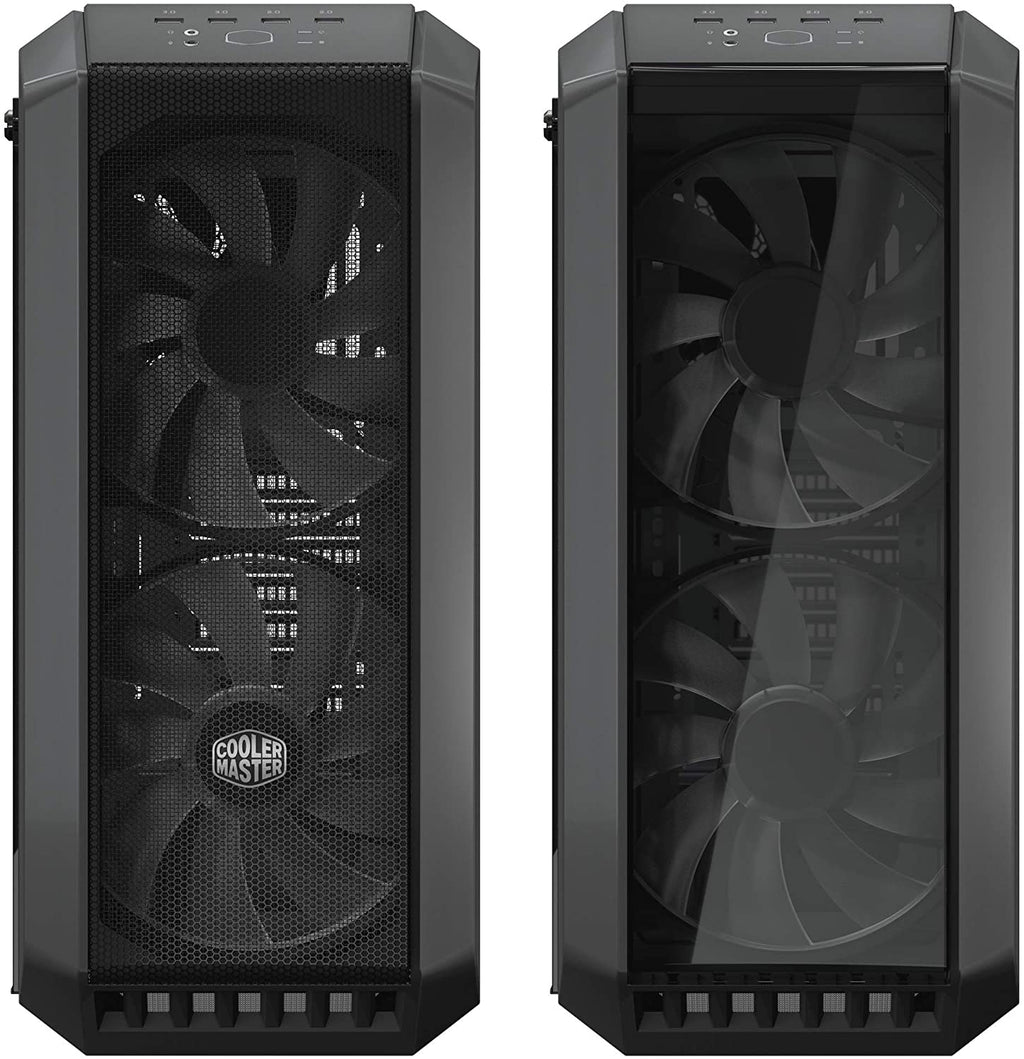

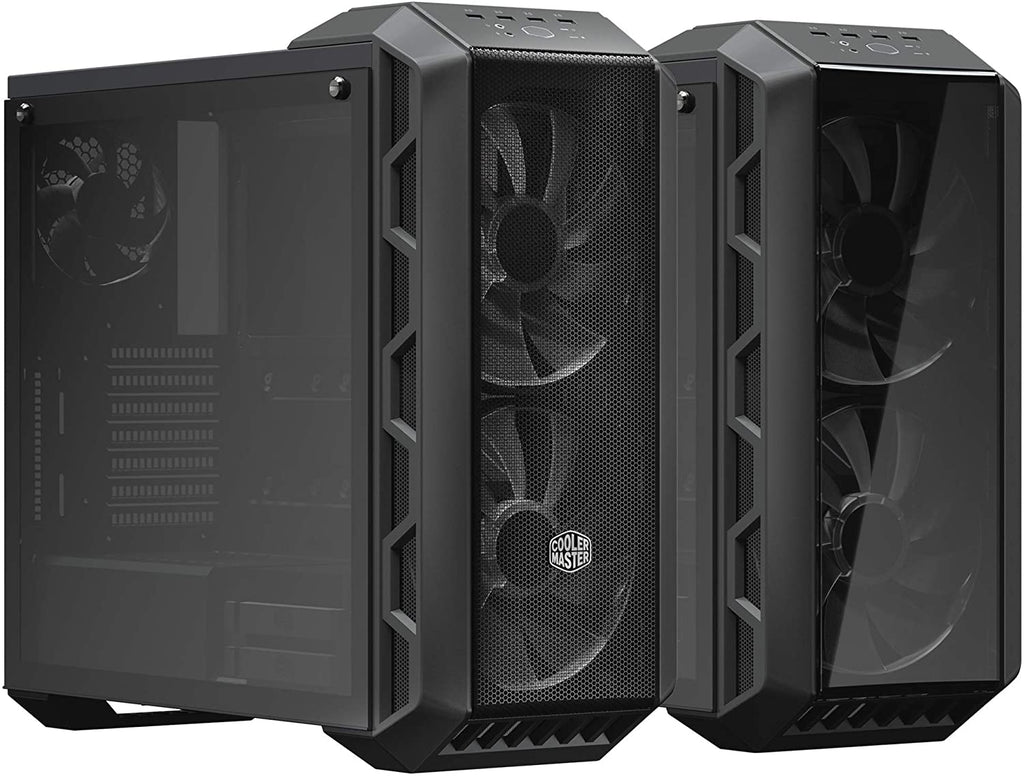

MESH & TRANSPARENT PANELS INCLUDED
Each choice of front panels decide whether the build will excel at ruthless airflow performance or head-turning aesthetics. Of course, the mesh is the ideal choice for providing the pre-installed fans with high volumes of fresh air. The transparent panel, on the other hand, parades those fans in crystal clear view.

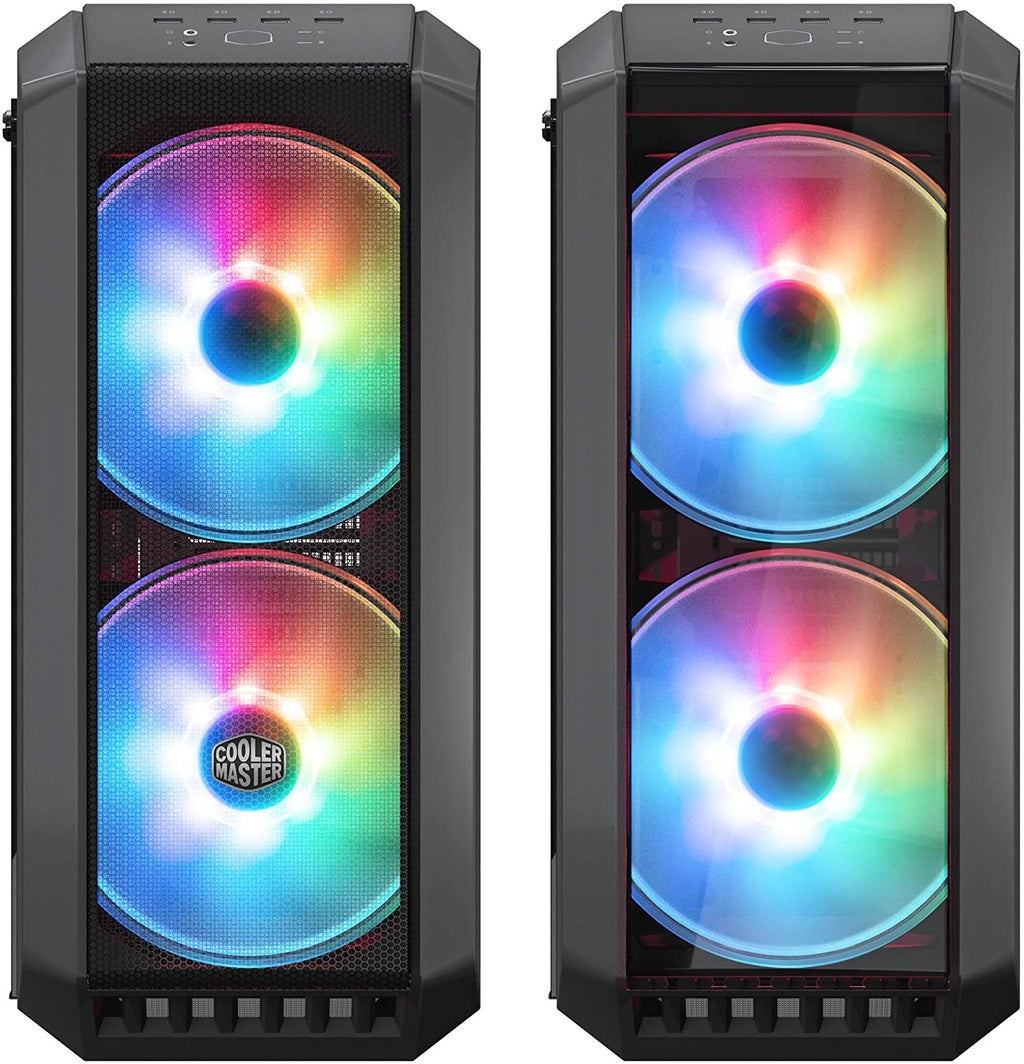

DUAL 200MM ARGB FANS
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.
ARGB LIGHTING SYSTEM
The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

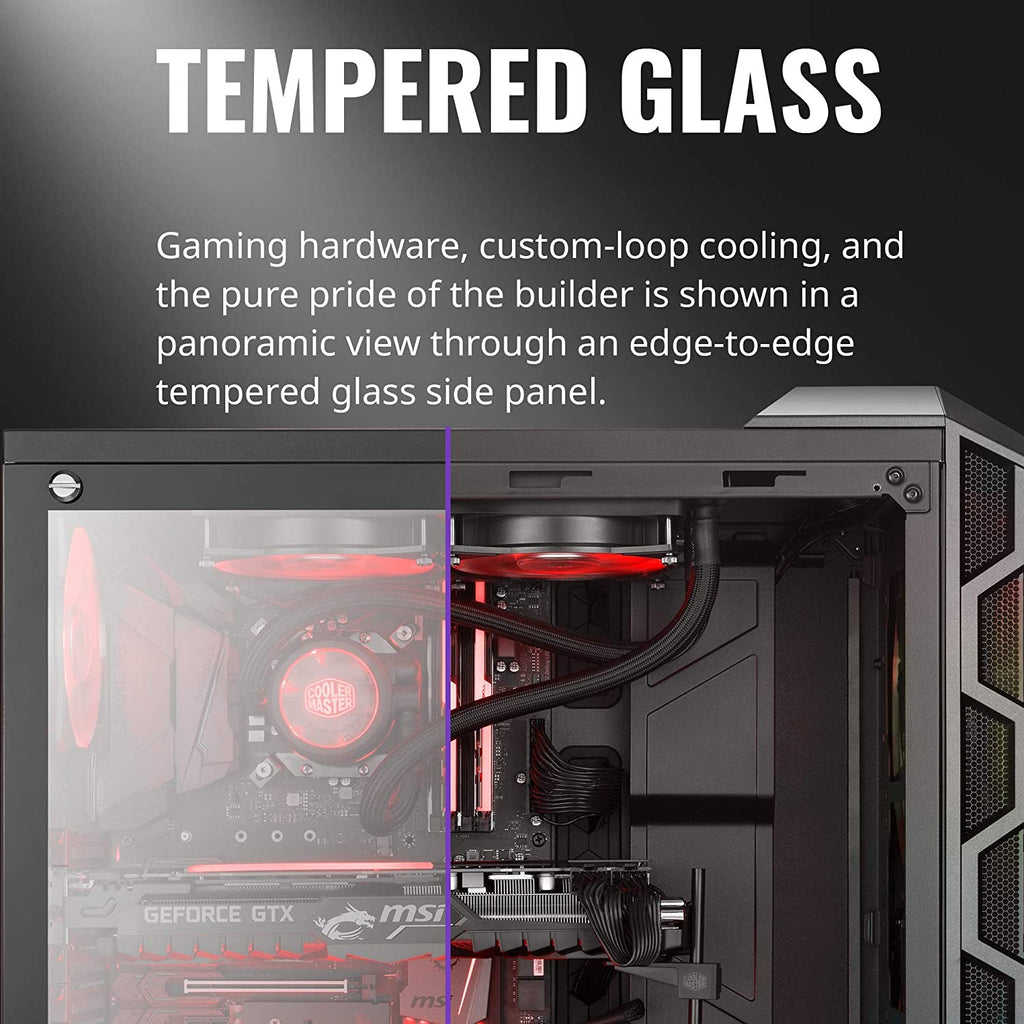

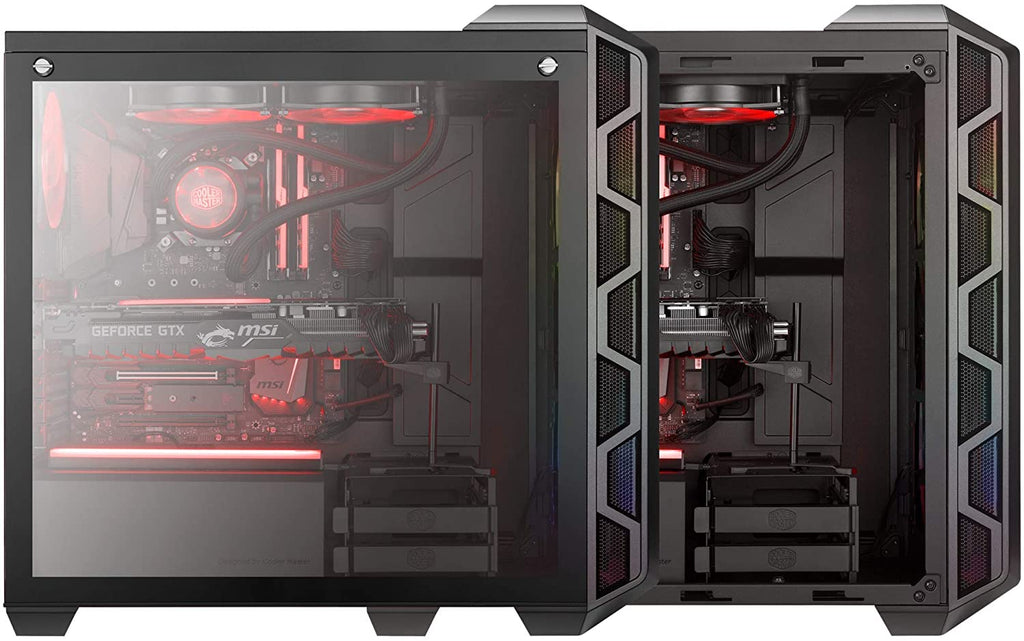

TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
ARGB CONTROLLER
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
| SERIES MasterCase Series |
| SIZE Mid Tower |
| AVAILABLE COLOR(S) Iron Grey |
| MATERIALS Steel, Plastic, Mesh |
| MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX, (support for up to 12" x 10.7", will limit cable management features) |
| EXPANSION SLOTS 7 |
| 5.25" DRIVE BAYS N/A |
| 2.5" / 3.5" DRIVE BAYS (COMBO) 2 |
| 2.5" DRIVE BAYS 2 |
| I/O PANEL 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter |
| PRE-INSTALLED FANS - FRONT 2x 200mm ARGB Fan |
| PRE-INSTALLED FANS - REAR 1x 120mm (Black) |
| FAN SUPPORT - TOP 2x 120mm, 2x 140mm, 1x 200mm |
| FAN SUPPORT - FRONT 3x 120mm, 2x 140mm, 2x 200mm |
| FAN SUPPORT - REAR 1x 120mm |
| RADIATOR SUPPORT - TOP 120mm, 140mm, 240mm |
| RADIATOR SUPPORT - FRONT 120mm, 140mm, 200mm, 240mm, 280mm, 360mm |
| RADIATOR SUPPORT - REAR 120mm |
| CLEARANCE - CPU COOLER 167mm/6.5" |
| CLEARANCE - PSU 180mm/7.1" |
| CLEARANCE - GFX 410mm/16.1" |
| DUST FILTERS Top, Front, Bottom |
| POWER SUPPLY SUPPORT Bottom mount, ATX |
