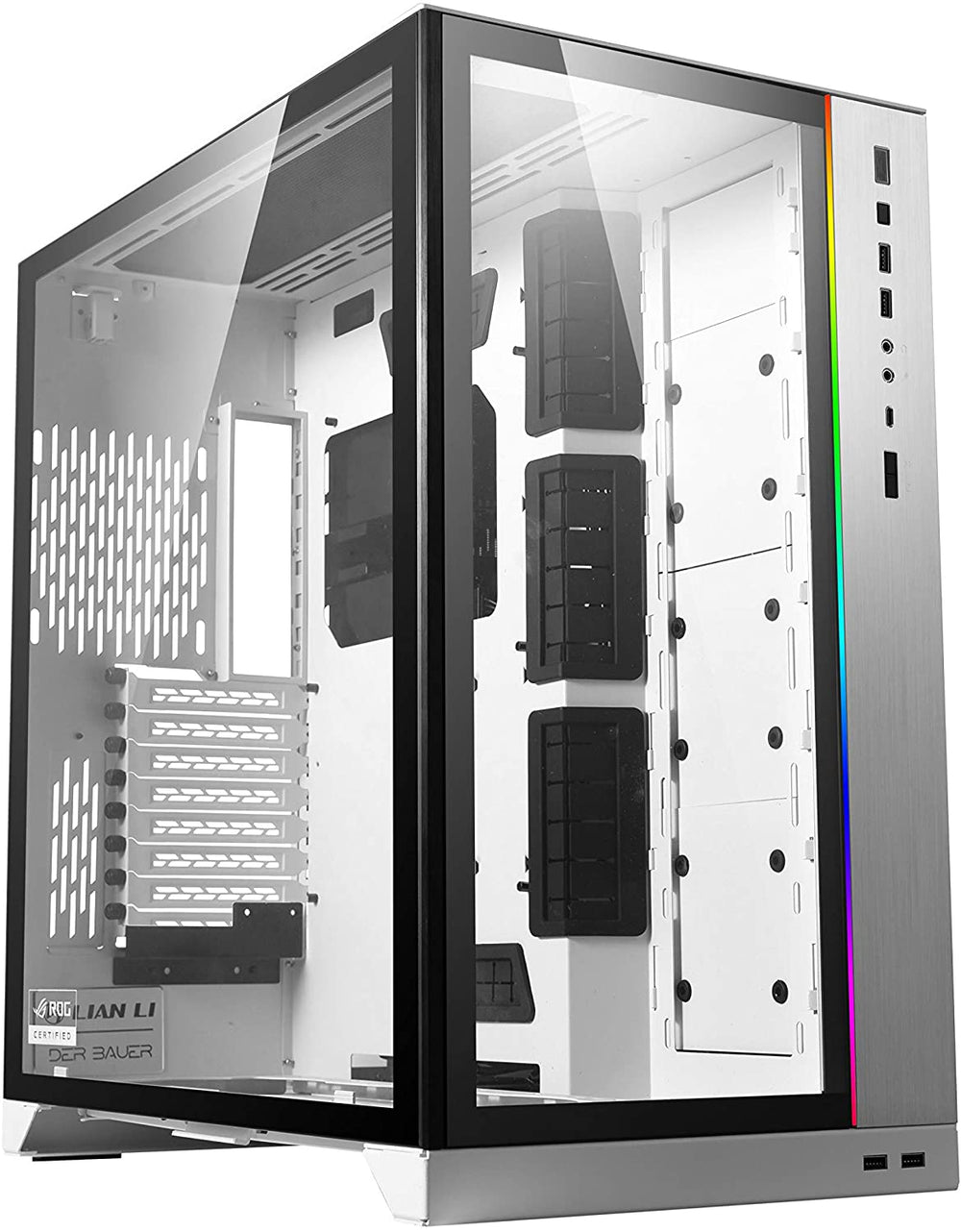

MODULAR DESIGN
FLEXIBILITY FOR ANY CONFIGURATION

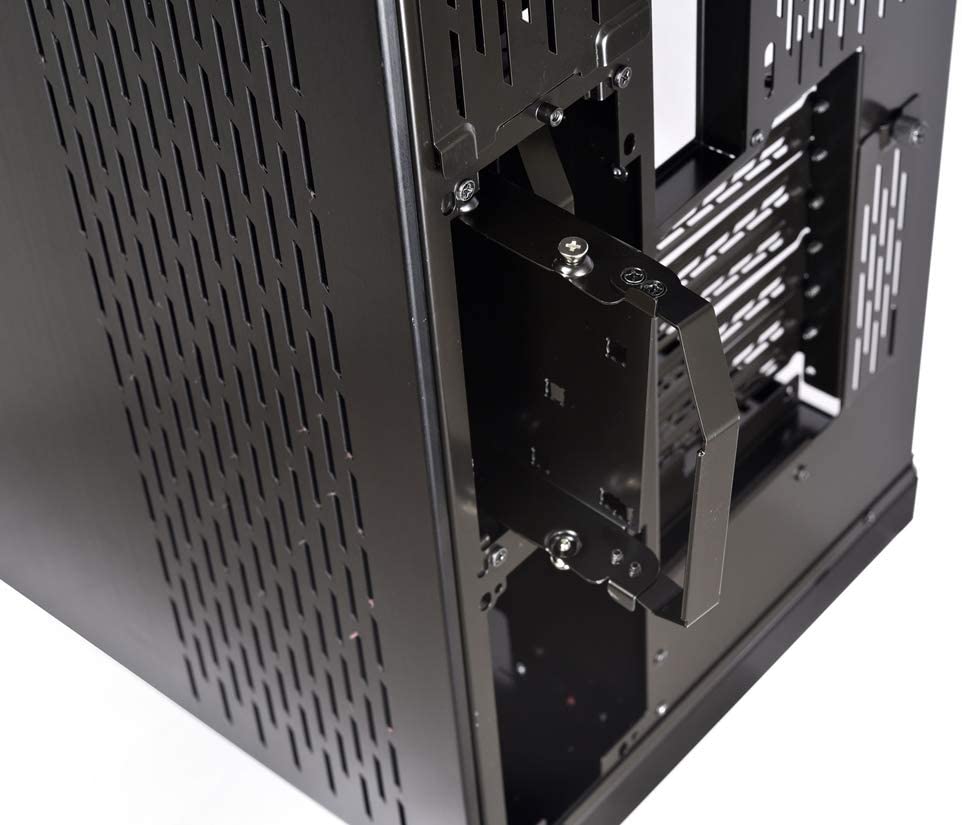

HOT SWAPPABLE DRIVES
FOR REPLACEMENT OR ADDITION OF STORAGE WITHOUT SHUTTING DOWN THE SYSTEM SPACIOUS FOR MULTIPLE AND BIGGER COMPONENTS
(D) 471 x (W) 285 x (H) 513mm
EASIER BUILT PROCESS

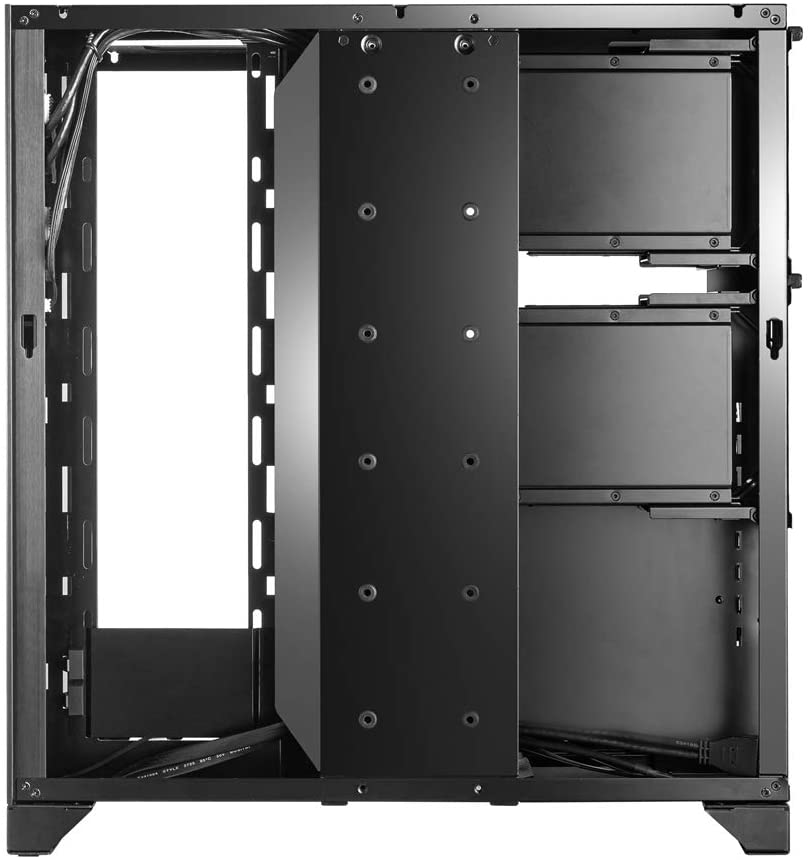

EFFORTLESS CABLE MANAGEMENT

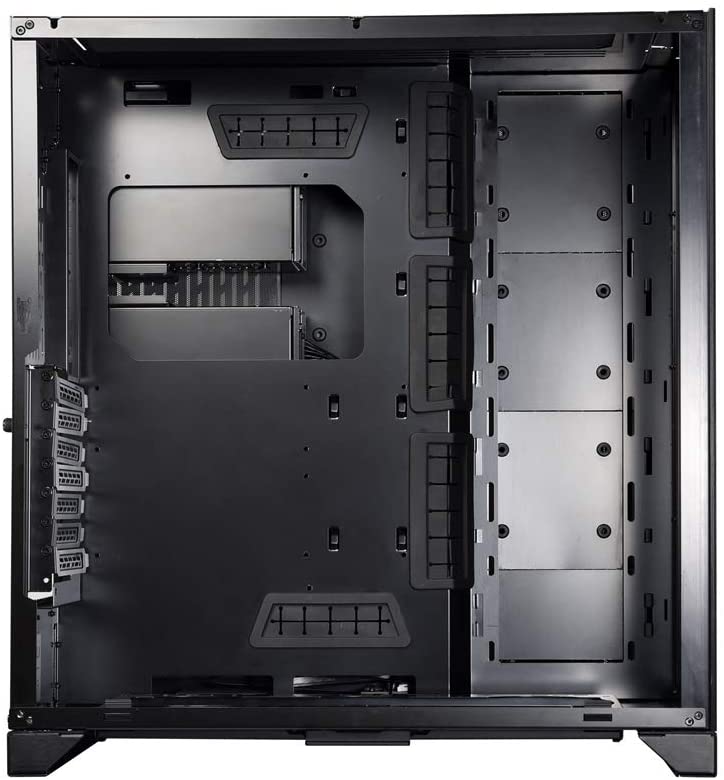

SEAMLESSLY SUPPORTING
E-ATX MOTHERBOARDS
EXTENSION PANEL (OPTIONAL) ENABLES SUPPORT FOR THE ROG DOMINUS EXTREME

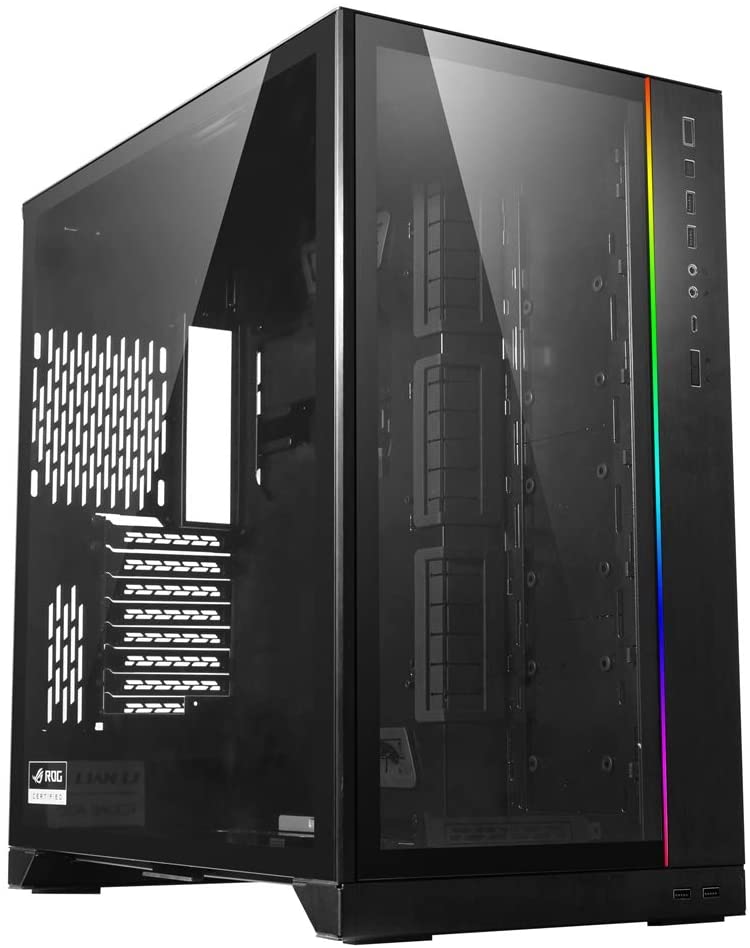

RGB LIGHTING SYNCH FRONT PANEL ADDRESSABLE RGB
BUILT-IN RGB EFFECT CONTROLLED BY THE FRONT PANEL M|C BUTTONS TO SYNC WITH THE MOTHERBOARD, SWITCH TO THE 8TH MODE

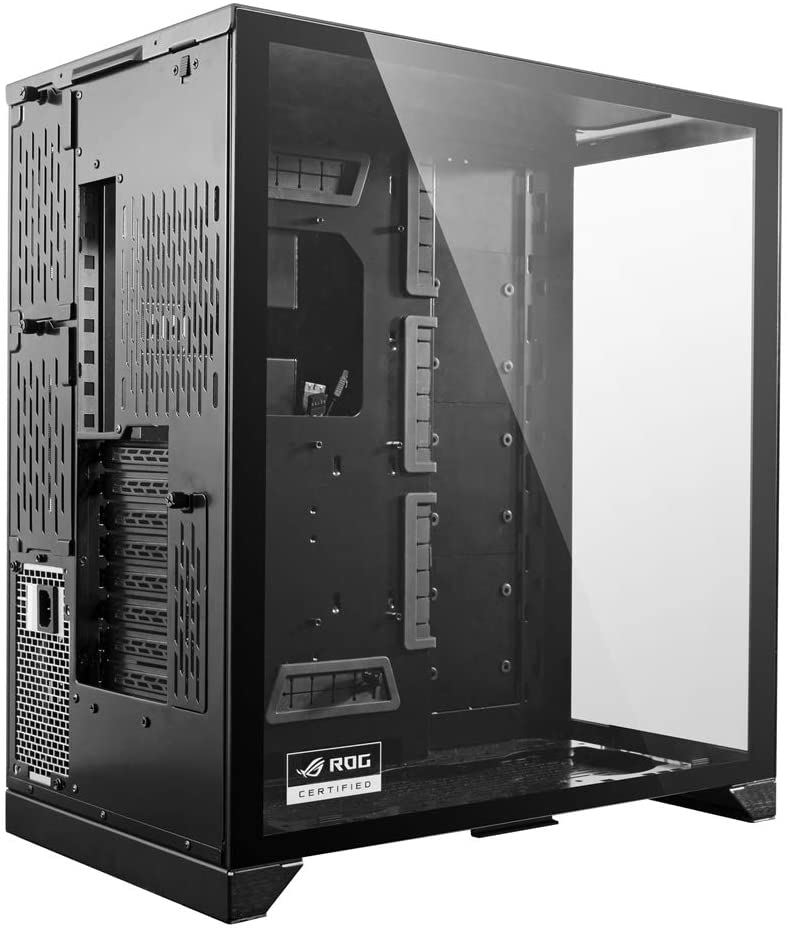

EXQUISITE ALUMINUM EXTERIOR
I/O PORTS PANEL
FRONT PANEL RIGHT SIDE
CASE FEET
DETAIL SPECIFICATIONS
| BRAND O11Dynamic XL ROG Certified |
| MOTHERBOARD E-ATX/ATX/M-ATX/ITX |
| PSU 220 mm (max 280mm) |
| COLOR White/Black |
| MATERIAL 1.0 mm ALUMINUM EXTERIOR 4.0 mm TEMPERED GLASS LEFT SIDE PANEL 1.0 mm SGCC INTERIOR |
| SYSTEM FAN SYSTEM FAN: 3 X 120 mm (side) + 1 X 120 mm (rear) + 3 X 120 mm/2 x 140 mm (base) + 3 X 120 mm/2 x 140 mm (top) |
| GPU LENGTH 446 mm |
| CPU CLEARANCE 167 mm |
| DRIVES 10 X 2.5 SSD or 6 X 2.5 SSD + 4 X 3.5 HDD |

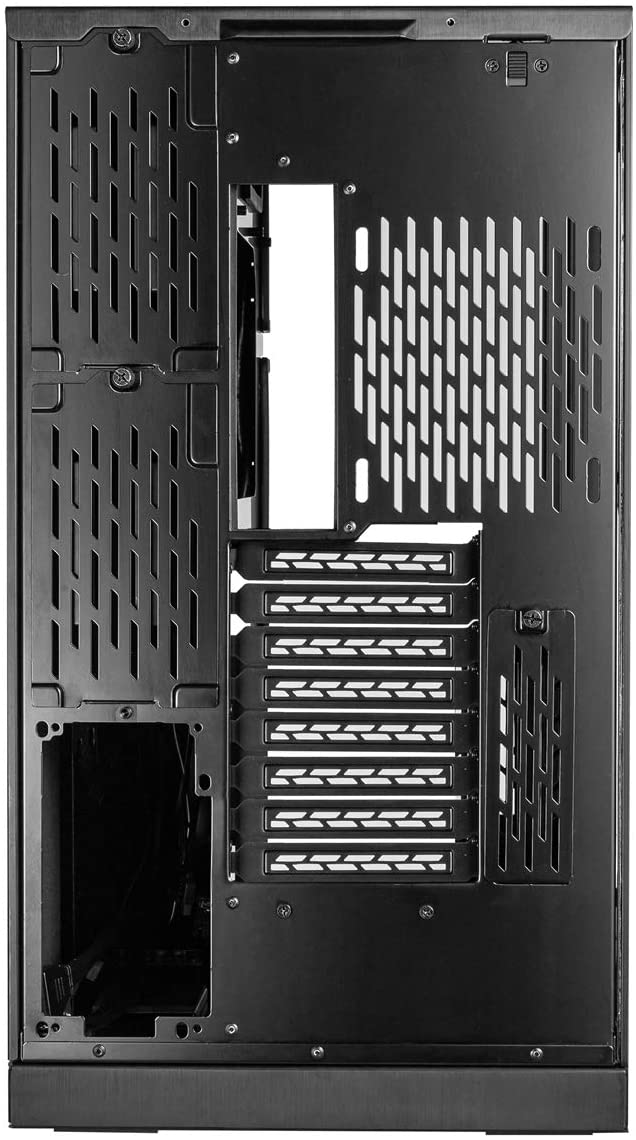

| EXPENSION SLOTS 8 |
| I/O PORTS 4 X USB 3.0 (2 on the front, 2 at the front case feet), 1 X USB 3.1 TYPE-C, 1 X HD AUDIO |

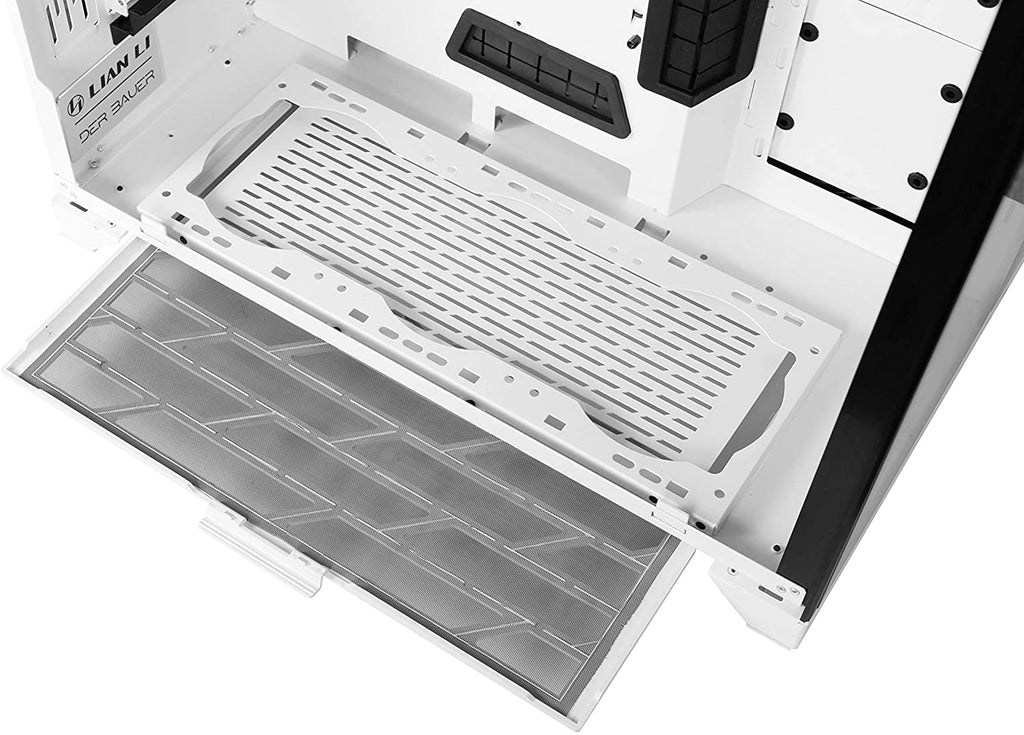

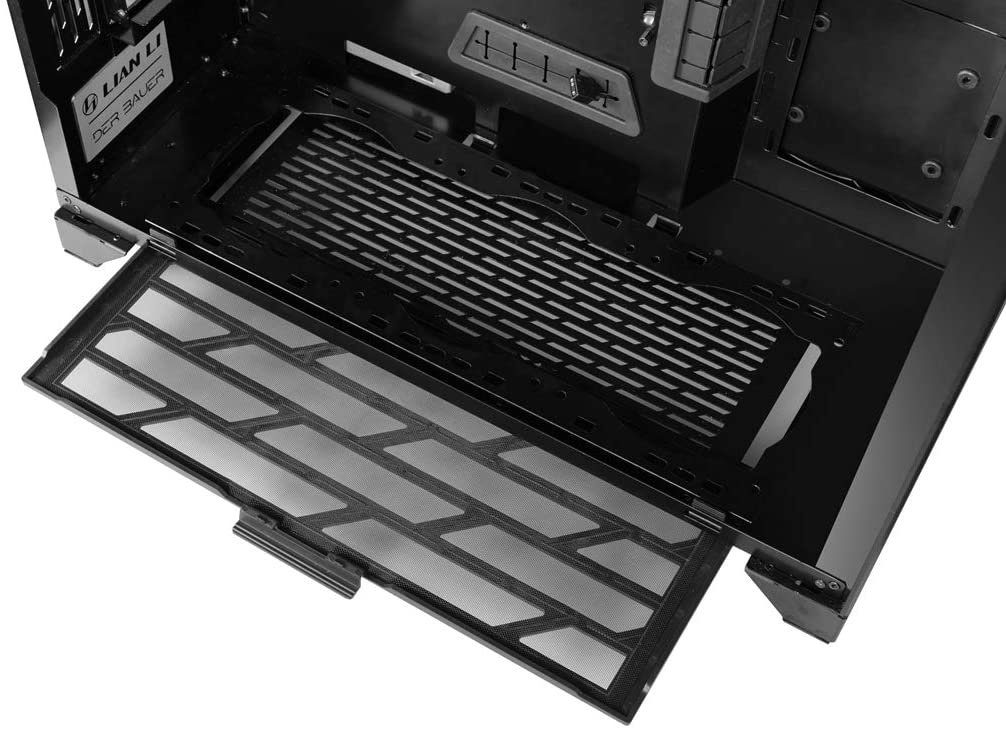

| DUST FILTERS 1 X TOP, 1 X BOTTOM, 2 X SIDE |
| Item Dimension (L"xW"xH") 24 x 15 x 23 Weight 60 lbs |
